UB Type Clevis Hinge | Link Fitting Manufacturer



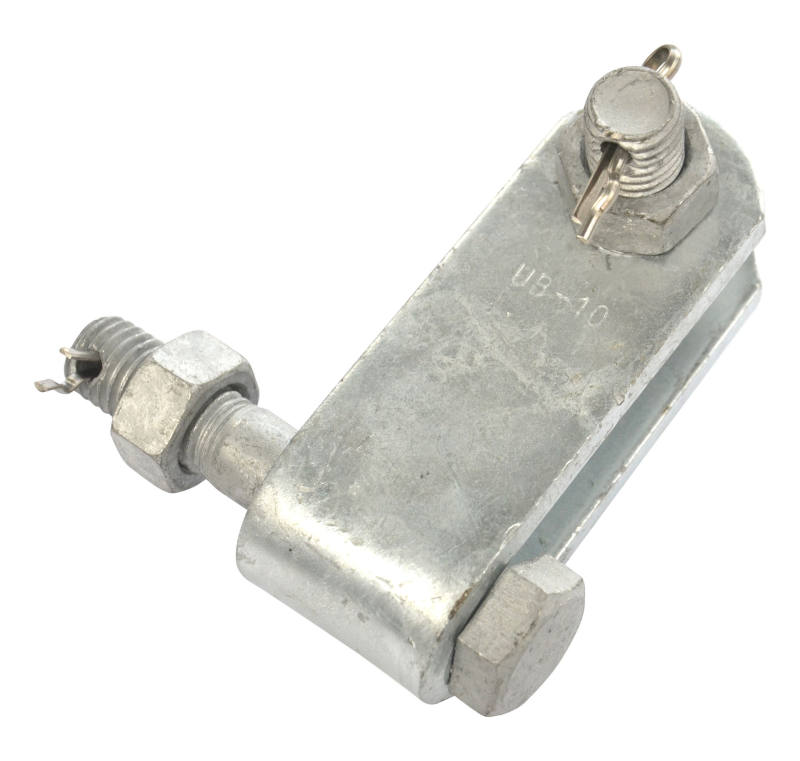

Clevis Eye (UB type)

★ Clevis Eye (UB type)
★ Material : Hot Dip Galvanized Steel
★ Well corrosion resistance /Easy installation .

UB type clevis hinges / Anchor shackle
UB type clevis hinges/ Anchor shackle is mainly suitable for hanging suspension insulator string (composed of suspension insulator & suspension clamp) on the conductor subjected to the pole or tower.on the other hand, they are also used for hanging tension insulator string (composed of suspension insulator & tension clamp) on the tension conductor subjected to the pole or tower.
Picture:
Type Main Dimensions( mm) Failing Load(KN) Weight(kg) Clevis Eye (Type UB)
c b H B
PB-7 18 16 70 45 70 0.75
PB-10 20 18 80 45 100 1.08
PB-12 24 22 100 60 120 2.28
PB-16 26 24 100 60 160 2.90
Packaging: preformed guy grip according to the concrete product， Usually packed with cartons, wooden cases(as customer's requirements)
Delivery: usually, it will take about two weeks for the order of 10000 sets for production
Terms of Payment : By T/T
