Mid Span / Long Span Guy Grip For ADSS
★ Medium Span ADSS Guy Grip for installation span length between 200-400M.
★ Medium Span ADSS Guy Grip for installation span length more than 400M.
★ Good corrosion resistance .
★ It is versatile and can be used with a variety of fittings
★ The installation is simple and convenient for construction

  • Medium/Long Span ADSS Guy Grip Usage and Characteristics


    Medium/Long Span ADSS Guy Grip is composed of helical Dead-end and structural reinforcing rods,

    the materials are aluminum-clad steel or galvanized steel
    it is mainly used for ADSS installation between strain tower/pole,corner tower/pole and terminal tower/pole which span length is more than 200 with RTS of the cable is larger than 15KN,
    Medium Span ADSS Guy Grip is used for installation span length between 200-400M,
    Long Span ADSS Guy Grip is used for installation span length more than 400M.

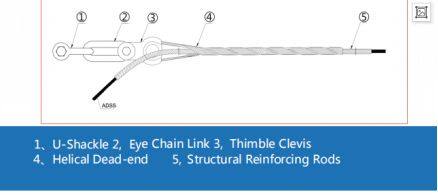

    Diagrammatic Drawing of Installation



  • Product Parameters :



    Reference Span(m)TypeAvailable Dia. of Cable( mm)
    Min(mm)Max(mm)
    100ANJ 095099.5
    ANJ 10509.610.5
    ANJ 116010.611.6
    ANJ 128011.712.8
    ANJ 141012.914.1
    ANJ 156014.215.6
    ANJ 170015.717
    Reference Span(m)TypeAvailable Dia. of Cable( mm)
    Min(mm)Max(mm)
    200/300ANY 0940 0208.69.4
    200/300ANY 1010 0209.510.1
    200/300ANY 1070 02010.210.7
    200/300ANY 1140 02010.811.4
    200/300ANY 1220 02011.512.2
    200/300ANY 1290 02012.312.9
    200/300ANY 1370 0201313.7
    200/300ANY 1460 02013.814.6
    200/300ANY 1550 02014.715.5
    300/400ANY 0940 0308.69.4
    300/400ANY 1010 0309.510.1
    300/400ANY 1070 03010.210.7
    300/400ANY 1140 03010.811.4
    300/400ANY 1220 03011.512.2
    300/400ANY 1290 03012.312.9
    300/400ANY 1370 0301313.7
    300/400ANY 1460 03013.814.6
    300/400ANY 1550 03014.715.5
    400/500ANY 1220 04011.512.2
    400/500ANY 1290 04012.312.9
    400/500ANY 1370 0401313.7
    400/500ANY 1460 04013.814.6
    400/500ANY 1550 04014.715.5
    400/500ANY 1650 04015.616.5
    500/600/700ANY 1370 0501313.7
    500/600/700ANY 1460 05013.814.6
    500/600/700ANY 1550 05014.715.5
    500/600/700ANY 1650 05015.616.5
    600/700/800ANY 1370 0601313.7
    600/700/800ANY 1460 06013.814.6
    600/700/800ANY 1550 06014.715.5
    600/700/800ANY 1650 06015.616.5
    700/800/900ANY 1460 07013.814.6
    700/800/900ANY 1550 07014.715.5
    700/800/900ANY 1650 07015.616.5
    700/800/900ANY 1750 07016.617.5
    700/800/900ANY 1870 07017.618.7
    800/900/1000ANY 1550 08014.715.5
    800/900/1000ANY 1650 08015.616.5
    800/900/1000ANY 1750 08016.617.5
    800/900/1000ANY 1870 08017.618.7

    Note:
    The symbol of “ANY”means: A- ADSS cable, N-tension set, Y-helical rods
    If your products are beyond the above specs, we make the tailored ones for you.


  • Packing /shipping/ Terms of Payment

    Packaging: preformed guy grip according to the concrete product， Usually packed with cartons, wooden cases(as customer's requirements)
    Delivery: usually, it will take about two weeks for the order of 10000 sets for production
    Terms of Payment : By T/T ,LC etcs .


  •
